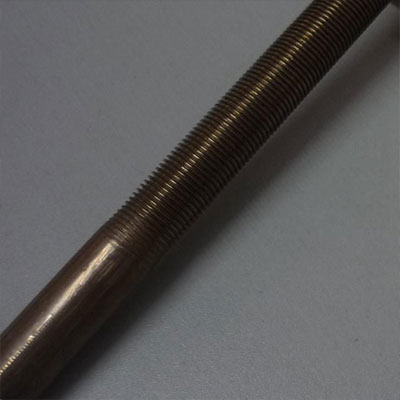

Heat Exchanger Spiral Finned Tube Extruded Low Fin Tubes
Fabrication Process
The process of integral low finned tube is similar to extruded finned tube, the difference is the fin of low fin tube is made from the same tube obtaining a fin of lower height. After rolling process, the outer surface of tube is formed with thread, which makes the finned tube have a higher heat transfer capacity.
Materials standard
Copper Alloy: ASTM B75/ B359 C12200/ 44300/ 68700/ 70600/ 71500
Carbon Steel: SA179 and others
Stainless Steel: SS304, SS316/ SS316L
EN and DIN standards are also available on request.
Specification on Integral Low Fin Tube
Tube Material |
Stainless Steel, Copper, Carbon steel, Alloy |
Tube OD |
10-38mm |
Tube Wall Thickness |
1.0mm-5.0mm |
Fin Material |
Same tube as base tube |
Fin thickness |
0.3mm |
Fin Pitch |
0.6~2mm |
Fin Height |
less than 1.6mm |
Features
1. Helpful for the dropping of the cold condensate at the bottom of the tube, reducing the liquid film and thermal resistance but improving the heat transfer efficiency.
2. Reduced size and cost saving, but with increased performance of existing equipment.
3. Providing 3 times of external surface heat transfer area than bare tube
4. Wide application, strengthen evaporation, condensation, gaseous heat and liquid heat transfer for shell medium.
Applications
1. Steam/Vapor heater
2. Air pre-heaters
3. Various cooler, such as oil cooler, process cooler, air condenser
4. Refrigerant evaporators
