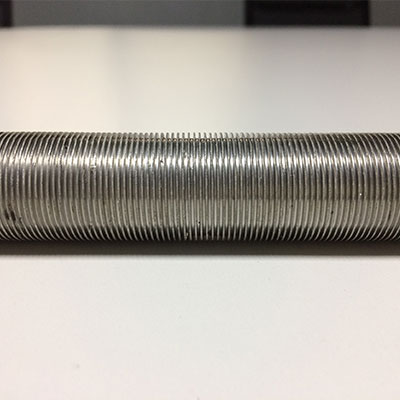

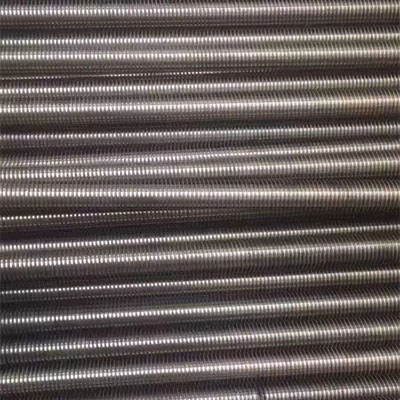

Stainless-Steel-Tube-Integral-Low-Fin-Tube-Maximizing-Heat-Transfer
Minyang Heat Transfer manufacturers integral low fin tubes with superior dimensional control in Copper, Brass, Cupro Nickel, Stainless Steel & Carbon Steel tube materials for a wide variety of heat transfer applications. Our facilities are capable of producing all types of integral low fin tubes / integral medium fin tubes and integral high fin tubes to suit every customer’s specific requirements..
Materials standard
Copper Alloy: ASTM B75/ B359 C12200/ 44300/ 68700/ 70600/ 71500
Carbon Steel: SA179 and others
Stainless Steel: SS304, SS316/ SS316L
EN and DIN standards are also available on request.
Specification on Integral Low Fin Tube
Tube Material |
Stainless Steel, Copper, Carbon steel, Alloy |
Tube OD |
10-38mm |
Tube Wall Thickness |
1.0mm-5.0mm |
Fin Material |
Same tube as base tube |
Fin thickness |
0.3mm |
Fin Pitch |
0.6~2mm |
Fin Height |
less than 1.6mm |
Features
1. Helpful for the dropping of the cold condensate at the bottom of the tube, reducing the liquid film and thermal resistance but improving the heat transfer efficiency.
2. Reduced size and cost saving, but with increased performance of existing equipment.
3. Providing 3 times of external surface heat transfer area than bare tube
4. Wide application, strengthen evaporation, condensation, gaseous heat and liquid heat transfer for shell medium.
Applications:
Low finned tubes are a reliable solution for controlling the temperature of gases and liquids, or for evaporating and condensing refrigerants.
