High Performance Copper Pipe Corrugated Fin Tubes

High Performance Copper Pipe Corrugated Fin Tubes

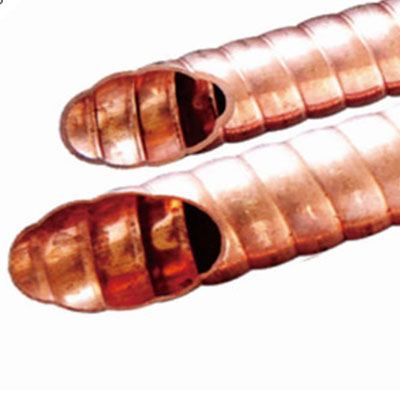

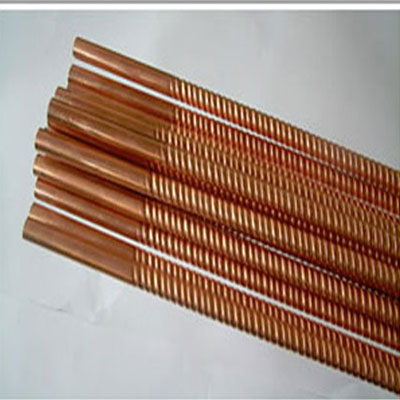

Minyang Heat Transfer manufactures corrugated fin tube by using a special process, where outer and inter surfaces are given spiral-shaped rotating impressions which equips corrugated tube with excellent thermal properties.These corrugated tubes have greater heat transfer to the inner side of the tube and allow for better condensation run-off.

Specification of corrugated fin tubes

Material: Copper, copper-nickel, aluminum-brass, carbon steel SA179, stainless steel SA304/304L, SS316/SS316L

Outside diameter of plain ends: 12.5mm~25.4mm

Thickness of plain ends: 0.5mm~2.0mm

Corrugation Pitch: 3mm~10mm

Corrugation Depth: 0.5mm~1.2mm

Number of threads: 1~3

Length: 500mm~7000mm

MOQ: 100 meters per item

Features

1. Corrugated tubes are supplied with deburred ends, smooth operation

2. Non-fouling, non blockage, not dirty, smooth operation.

Applications

1. Widely used for fluid to fluid & gas to gas heat exchanger

2. Air conditioning heat exhcangers and chiller units
